Wire Wrapping

• Multi machine capability to perform wrapped on pipe screens of 1.900 to 9-5/8 diameter pipe.
• Prepack screens
• ​Rod Base Screen ¾ “ -30”

• Pipe Base Screen ¾ “ – 18”

• Wrap On Pipe/ Direct Wrap Screens 1 ½ “ – 9 5/8”

• Pre-Pack Screens ¾ “ – 18”

Round Hole Perforating

• Capabilities
  • Custom drill patterns (0-360 degree hole phasing)

  • 1.315" OD to 18" OD Pipe

  • Perforation hole sizes 1/4", 5/16", 3/8", 1/2", 3/4"

• Throughput 1-50 jts 1-3 days


• Post Weld Heat Treat Capabilities​
  • Ceramic resistant heaters
  • Graphs provided upon request

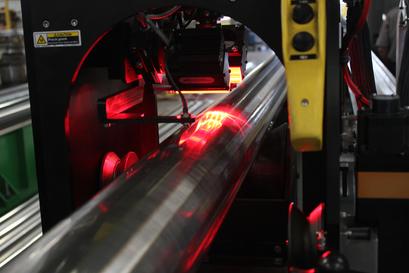

Optical Camera

• Capabilities
  • Pipe lengths up to 45’
  • 1.050” to 9-5/8” diameter
  • Slot tolerances
    • Customer parameters
      • +/-.0015
      • 90/95/100%
  • Print Outs upon request

• Sawing
  • Diameters up to 24”
  • Auto indexing

• EDM Machining
  • High Precision Profiling
  • Material up to 2” thick


Back to Top ^

Fittings- Oil & Gas

• Custom end-rings

• Guides / centralizers for oil & gas industry
  • ½” thru customer requirements
• Blade Type
  • Weld-On Centralizers


Fittings- Water Well

• NPT

• ASTM-F480 Flush Joint Threats

• PVC Adapters

• Splinlok Adapters
• Wire Lock Fittings

info@alloymachineworks.com

Welding & PWHT

• Certified Welders- ASME Section 9

• NACE & Non-NACE approved procedures
• MIG & TIG capabilities

• Approved weld procedures


​​​Our company offers a wide range of products & services to meet your project needs. Combined with our use of the highest quality materials, we are able to ensure exceptional workmanship that is highly durable and cost effective.

We also do custom design fittings

Machining

• ​Lathes
  • Through spindle capacity 1" - 9 5/8"

• Milling
  • Cincinnati CNC Milling Center
    • 10" x 24" table travel

API Threading & Bucking

• Threading Equipment
  • Pipe sizes 1.315” through 9-5/8”
  • Pup jts & Pipe lengths through 48 ft.
  • Thread Types
    • API 8rd and 10 Rd
    • Buttress
    • Non-API threads
    • FJ Threads
  • Throughput time
    • Specialize in jobs of 1 to 50 joints
      • (Normal 1-3 days)
      • Automated Pipe Handling Equipment
  • Bucking
    • Size capabilities 1.315” through 10- ¾”
    • Torque Values up to 26, 000 ft/lb
    • Computer Torque Turns Capable

Wire Shaping

• Turkshead Wire Shaping Machines

  • Grades:
    • 304L
    • 316L
    • Incoloy 825
    • Monel 625
    • Carbon Steel
  • Multiple sizes
  • Multiple Shapes
    • Keystone / Wedge
    • House​
    • Round

Mill Slotted Pipe

• Pipe Diameters 2" thru 20”
• Slot Widths and Patterns per Customer Specifications

INC

Alloy Machine Works For You! Call Us Today!
